带薄膜防尘塑料电缆接头 Film Dust-proof Plastic Cable Gland
 |
|
|

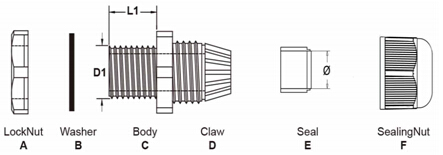

MATERIAL:A,C,D,F--NYLON66 ; B,E--NBR FLAME CLASS：UL94 V-2 TEMPERATURE：-40°C to 85°C
COLOR:WHITE--W,BLACK--BK Protection Degree:Useing suitable O-sealings within the clamping range,Its protection degree can reach IP67
Unit：mm
|
|
Part No.
|
螺规格
|
适应电缆外径
|
螺纹外径
|
机板开孔
|
螺纹长度
|
扳手尺寸A&F
|
|
Thread
|
Cable Range Φ
|
D1
|
Panel Mounting Hole
|
L1
|
Spanner Size
|
|
FDNCG-M16-10-S-BK
|
M16x1.5
|
5~10
|
16
|
16~16.3
|
8
|
22/22
|
|
FDNCG-M16-10-XXL-BK
|
M16x1.5
|
5~10
|
16
|
16~16.3
|
15
|
22/22
|
|
FDNCG-M20L-14-BK
|
M20x1.5
|
6~14
|
20
|
20~20.3
|
15
|
27/27
|
|
FDNCG-M25L-18-BK
|
M25x1.5
|
13~18
|
25
|
25~25.4
|
15
|
33/33
|
|
FDNCG-M32-25-BK
|
M32x1.5
|
16~24
|
32
|
|
12
|
41/41
|
|
FDNCG-M40L-32-BK
|
M40X1.5
|
25~32
|
40
|
40.0~40.4
|
20
|
50/52
|
|
FDNCG-M50L-41-BK
|
M50X1.5
|
32~41
|
50
|
50.0~50.4
|
22
|
62/62
|
|
FDNCG-M63L-44-BK
|
M63X1.5
|
36~45
|
63
|
63.0~63.4
|
18
|
75/65
|
|
