公制外迫式电缆接头 Nylon Cable Gland
 |
|
|

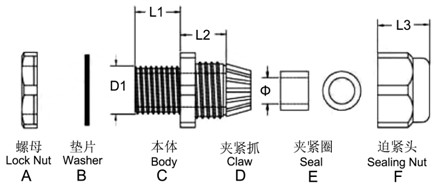

MATERIAL:A,C,D,F--NYLON66 ; B,E--NBR FLAME CLASS：UL94 V-2 TEMPERATURE：-40°C to 85°C
Protection Degree:Useing suitable O-sealings within the clamping range,Its protection degree can reach IP67
COLOR:WHITE--W,BLACK--BK Unit：mm
|
|
Part No.
|
螺规格
|
适应电缆外径
|
螺纹外径
|
机板开孔
|
螺纹长度
|
接合长度
|
扳手尺寸
|
|
Thread
|
Cable Range Φ
|
D1
|
Panel Mounting Hole
|
L1
|
L2+L3
|
Spanner Size A&F
|
|
NCG-M12
|
M12×1.5
|
3~6.5
|
12
|
12~12.3
|
8
|
22
|
18/16
|
|
NCG-M12L
|
15
|
|
NCG-M14
|
M14×1.5
|
4~8
|
14
|
14~14.3
|
8
|
26
|
22/19
|
|
NCG-M16S
|
M16×1.5
|
4~8
|
16
|
16~16.3
|
8
|
26
|
22/19
|
|
NCG-M16
|
5~10
|
24/22
|
|
NCG-M16L
|
4~8
|
15
|
22/19
|
|
NCG-M18
|
M18×1.5
|
5~10
|
18
|
18~18.3
|
8
|
27
|
24/22
|
|
NCG-M18L
|
15
|
|
NCG-M20S
|
M20×1.5
|
6~10
|
20
|
20~20.3
|
9
|
28
|
27/24
|
|
NCG-M20
|
8~14
|
27/27
|
|
NCG-M20L
|
6~12
|
15
|
27/24
|
|
NCG-M22
|
M22×1.5
|
10~14
|
22
|
22~22.3
|
10
|
30
|
30/27
|
|
NCG-M22L
|
15
|
|
NCG-M24
|
M24×1.5
|
12~15
|
24
|
24~24.4
|
10
|
30
|
30/27
|
|
NCG-M25
|
M25×1.5
|
13~18
|
25
|
25~25.4
|
10
|
35
|
33/33
|
|
NCG-M25L
|
15
|
|
NCG-M27
|
M27×1.5
|
13~18
|
27
|
27~27.4
|
10
|
35
|
33/33
|
|
NCG-M30
|
M30×1.5
|
16~21
|
30
|
30~30.4
|
11
|
35
|
35/36
|
|
NCG-M32
|
M32×1.5
|
16~21
|
32
|
32~32.4
|
11
|
35
|
39/36
|
|
NCG-M32L
|
15
|
|
NCG-M36
|
M36×1.5
|
18~25
|
36
|
36~36.4
|
12
|
40
|
46/42
|
|
NCG-M40
|
M40×1.5
|
22~32
|
40
|
40~40.4
|
14
|
48
|
50/54
|
|
NCG-M40L
|
18
|
|
NCG-M50
|
M50×1.5
|
32~38
|
50
|
50~50.4
|
14
|
49
|
63/61
|
|
NCG-M50L
|
18
|
|
NCG-M63
|
M63×1.5
|
37~44
|
63
|
63~63.4
|
14
|
50
|
75/65
|
|
NCG-M63L
|
18
|
|
