EMC金属电缆接头(不带薄膜） EMC Metal Cable Gland
|
|
|
产品才质：A.C1.E.F 部分以铜合金镀镍制成，E 部分以UL认可之尼龙PA66制成（防火等级UL 94V-2），B及D部分采用EPDM耐候橡胶制成。 颜色：金属色。 工作温度：-40℃至100℃。

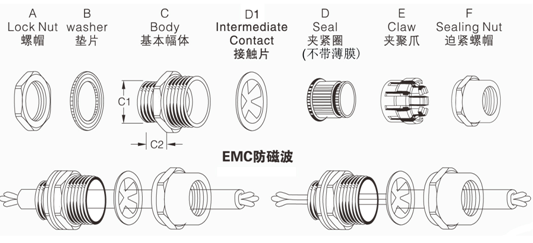

产品特性：特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。 产品用途：本产品经特殊设计，在使用隔离线电缆时，可使用低压电磁波降低减弱。
Unit:mm |
|
Part No.
|
螺牙规格
|
通用电缆
|
机板口径
|
螺纹长度
|
扳手径
|
|
Thread
|
Cable Range Ф
|
Panel Mounting Hole
|
Thread Length C2
|
Spanner Size A & F
|
|
EMC-QN-M12-5.3
|
M12x1.5
|
5.3~3
|
12~12.3
|
8
|
17/17
|
|
EMC-QN-M12-8
|
M12x1.5
|
8~4.5
|
12~12.3
|
8
|
17/17
|
|
EMC-QN-M16S-8
|
M16x1.5
|
8~4
|
16~16.3
|
8
|
18/18
|
|
EMC-QN-M16-10
|
M16x1.5
|
10~6
|
16~16.3
|
9
|
22/22
|
|
EMC-QN-M20M-8.8
|
M20x1.5
|
8.8~5
|
20~20.3
|
9
|
24/24
|
|
EMC-QN-M20S-12
|
M20x1.5
|
12~8
|
20~20.3
|
9.5
|
24/24
|
|
EMC-QN-M20-10
|
M20x1.5
|
11~6
|
20~20.3
|
9.5
|
26/26
|
|
EMC-QN-M20-14
|
M20x1.5
|
14~9
|
20~20.3
|
9.5
|
26/26
|
|
EMC-QN-M25-16
|
M25x1.5
|
16~10
|
25~25.4
|
12
|
32/32
|
|
EMC-QN-M25-18
|
M25x1.5
|
18~15
|
25~25.4
|
12
|
30/30
|
|
EMC-QN-M32 -22
|
M32x1.5
|
22~15
|
32~32.4
|
12.5
|
41/41
|
|
EMC-QN-M32-25
|
M32x1.5
|
25~18
|
32~32.4
|
12.5
|
41/41
|
|
EMC-QN-M40-25
|
M40x1.5
|
25~20
|
40~40.4
|
15
|
50/50
|
|
EMC-QN-M40-30
|
M40x1.5
|
30~24
|
40~40.4
|
15
|
50/50
|
|
EMC-QN-M50-32
|
M50x1.5
|
32~26
|
50~50.4
|
15
|
60/60
|
|
EMC-QN-M50-40
|
M50x1.5
|
40~30
|
50~50.4
|
15
|
60/60
|
|
EMC-QN-M63-46
|
M63x1.5
|
46~38
|
63~63.4
|
15
|
73/73
|
|
EMC-QN-M63-50
|
M63x1.5
|
50~40
|
63~63.4
|
15
|
73/73
|
|
EMC-QN-G1/4-5.3
|
G1/4
|
5.3~3
|
13.1~13.4
|
8
|
17/17
|
|
EMC-QN-G1/4-8
|
G1/4
|
8~4.5
|
13.1~13.4
|
8
|
17/17
|
|
EMC-QN-G3/8-7
|
G3/8
|
7~4
|
16.6~16.9
|
9
|
22/22
|
|
EMC-QN-G3/8-10
|
G3/8
|
10~6
|
16.6~16.9
|
9
|
22/22
|
|
EMC-QN-G1/2-11
|
G1/2
|
11~6
|
20.9~21.2
|
9.5
|
26/26
|
|
EMC-QN-G1/2-14
|
G1/2
|
14~9
|
20.9~21.2
|
9.5
|
26/26
|
|
EMC-QN-G3/4-16
|
G3/4
|
16~10
|
26.4~26.8
|
12
|
32/32
|
|
EMC-QN-G3/4-18
|
G3/4
|
18~13
|
26.4~26.8
|
12
|
32/32
|
|
EMC-QN-G1-22
|
G1
|
22~15
|
33.2~33.6
|
12.5
|
41/41
|
|
EMC-QN-G1-25
|
G1
|
25~18
|
33.2~33.6
|
12.5
|
41/41
|
|
EMC-QN-G1 1/4-25
|
G1 1/4
|
25~20
|
41.9~42.3
|
15
|
50/50
|
|
EMC-QN-G1 1/4-30
|
G1 1/4
|
30~24
|
41.9~42.3
|
15
|
50/50
|
|
EMC-QN-G1 1/2-32
|
G1 1/2
|
32~26
|
48~48.4
|
15
|
60/60
|
|
EMC-QN-G1 1/2-40
|
G1 1/2
|
40~30
|
48~48.4
|
15
|
60/60
|
|
EMC-QN-G2-46
|
G2
|
46~38
|
60~60.4
|
15
|
73/73
|
|
EMC-QN-G2-50
|
G2
|
50~40
|
60~60.4
|
15
|
73/73
|
|
EMC-QN-PG7-5.3
|
PG7
|
5.3~3
|
12.5~12.8
|
8
|
17/17
|
|
EMC-QN-PG7-8
|
PG7
|
8~4.5
|
12.5~12.8
|
8
|
17/17
|
|
EMC-QN-PG9-5.3
|
PG9
|
5.3~3
|
15.2~15.5
|
8
|
18/17
|
|
EMC-QN-PG9-8
|
PG9
|
8~4.5
|
15.2~15.5
|
8
|
18/17
|
|
EMC-QN-PG11-7
|
PG11
|
7~4
|
18.6~18.9
|
9
|
22/22
|
|
EMC-QN-PG11-10
|
PG11
|
10~6
|
18.6~18.9
|
9
|
22/22
|
|
EMC-QN-PG13.5-8.8
|
PG13.5
|
8.8~5
|
20.4~20.7
|
9.5
|
24/24
|
|
EMC-QN-PG13.5-12
|
PG13.5
|
12~7
|
20.4~20.7
|
9.5
|
24/24
|
|
EMC-QN-PG16-11
|
PG16
|
11~6
|
22.5~22.8
|
9.5
|
26/26
|
|
EMC-QN-PG16-14
|
PG16
|
14~9
|
22.5~22.8
|
9.5
|
26/26
|
|
EMC-QN-PG21-16
|
PG21
|
16~10
|
28.3~28.7
|
12
|
32/32
|
|
EMC-QN-PG21-18
|
PG21
|
18~13
|
28.3~28.7
|
12
|
32/32
|
|
EMC-QN-PG29-22
|
PG29
|
22~15
|
37~37.4
|
12.5
|
41/41
|
|
EMC-QN-PG29-25
|
PG29
|
25~18
|
37~37.4
|
12.5
|
41/41
|
|
EMC-QN-PG36-25
|
PG36
|
25~20
|
47~47.4
|
15
|
50/50
|
|
EMC-QN-PG36-30
|
PG36
|
30~24
|
47~47.4
|
15
|
50/50
|
|
EMC-QN-NPT 3/8-7
|
NPT 3/8
|
7~4
|
-
|
13
|
22
|
|
EMC-QN-NPT 3/8-10
|
NPT 3/8
|
10~6
|
-
|
13
|
22
|
|
EMC-QN-NPT 1/2-11
|
NPT 1/2
|
11~6
|
-
|
13
|
26
|
|
EMC-QN-NPT 1/2-14
|
NPT 1/2
|
14~9
|
-
|
13
|
26
|
|
EMC-QN-NPT 3/4-16
|
NPT 3/4
|
16~10
|
-
|
14
|
32
|
|
EMC-QN-NPT 3/4-18
|
NPT 3/4
|
18~13
|
-
|
14
|
32
|
|
EMC-QN-NPT 1-22
|
NPT 1
|
22~15
|
-
|
15
|
41
|
|
EMC-QN-NPT 1-25
|
NPT 1
|
25~18
|
-
|
15
|
41
|
|
EMC-QN-NPT 1 1/4-25
|
NPT 1 1/4
|
25~20
|
-
|
15
|
50
|
|
EMC-QN-NPT 1 1/4-30
|
NPT 1 1/4
|
30~24
|
-
|
15
|
50
|
|
