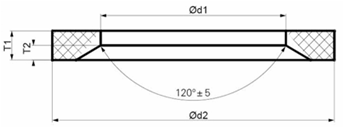

斜角平垫圈(ED圈) Bevel Flat Washer (ED Ring)
|
|
|
|
材质：NBR/FKM
颜色：黑色--BK 硬度：80~90A
DIN-3869-1994
Unit:mm
|
|
Part No.
|
d2
|
d1
|
T1
|
T2
|
Metric Thread
|
Inch Thread
|
|
FWED-9.9-6.5-1.0
|
9.9
|
6.5
|
1.0
|
0.5
|
M8x1.0
|
/
|
|
FWED-11.9-8.4-1.0
|
11.9
|
8.4
|
1.0
|
0.5
|
M10X1.0
|
G1/8A
|
|
FWED-14.4-9.8-1.5
|
14.4
|
9.8
|
1.5
|
0.8
|
M12X1.5
|
/
|
|
FWED-16.5-11.6-1.5
|
16.5
|
11.6
|
1.5
|
0.8
|
M14X1.5
|
G1/4A
|
|
FWED-18.9-13.8-1.5
|
18.9
|
13.8
|
1.5
|
0.8
|
M16X1.5
|
/
|
|
FWED-18.9-14.7-1.5
|
18.9
|
14.7
|
1.5
|
0.8
|
M17X1.5
|
G3/8A
|
|
FWED-20.9-15.7-1.5
|
20.9
|
15.7
|
1.5
|
0.8
|
M18X1.5
|
/
|
|
FWED-22.9-17.8-1.5
|
22.9
|
17.8
|
1.5
|
0.8
|
M20X1.5
|
/
|
|
FWED-23.9-18.5-1.5
|
23.9
|
18.5
|
1.5
|
0.8
|
M21X1.5
|
G1/2A
|
|
FWED-24.3-19.6-1.5
|
24.3
|
19.6
|
1.5
|
0.8
|
M22X1.5
|
/
|
|
FWED-29.2-23.9-1.5
|
29.2
|
23.9
|
1.5
|
0.8
|
M26X1.5
|
G3/4A
|
|
FWED-29.2-23.9-2.0
|
29.2
|
23.9
|
2.0
|
0.8
|
M27X2.0
|
G3/4A
|
|
FWED-32.7-26.7-2.0
|
32.7
|
26.7
|
2.0
|
1.0
|
M30X2.0
|
/
|
|
FWED-35.7-29.7-2.0
|
35.7
|
29.7
|
2.0
|
1.0
|
M33X2.0
|
G1A
|
|
FWED-38.7-32.7-2.0
|
38.7
|
32.7
|
2.0
|
1.0
|
M36X2.0
|
/
|
|
FWED-41.7-35.7-7-2.0
|
41.7
|
35.7
|
2.0
|
1.0
|
M39X2.0
|
/
|
|
FWED-45.8-38.8-2.0
|
45.8
|
38.8
|
2.0
|
1.0
|
M42X2.0
|
G1 1/4A
|
|
FWED-50.7-44.7-2.0
|
50.7
|
44.7
|
2.0
|
1.0
|
M48X2.0
|
G1 1/2A
|
|
FWED-56.7-50.4-2.5
|
56.7
|
50.4
|
2.5
|
/
|
M50x2.5
|
G1 3/4A
|
|
FWED-62.7-56.4-2.5
|
62.7
|
56.4
|
2.5
|
/
|
M60x2.5
|
G2A
|
|
